Project Description

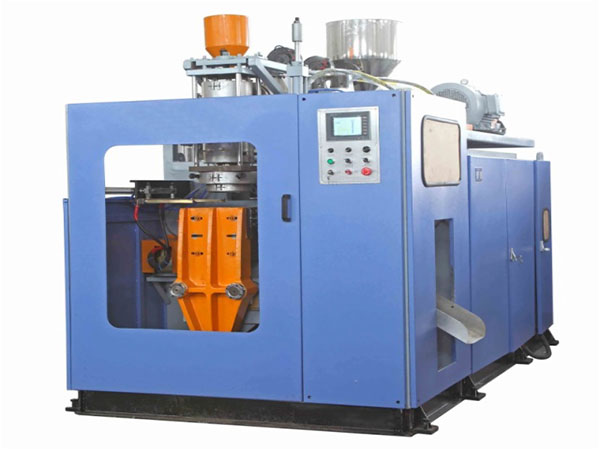

Single station blow molding machine 2L-5L
Main Parameters | Unit | GRT 60-5L |
Max. Product Volume | (L) | 5 |
Dry Cycle | (pcs/h) | 1100 |
Screw Diameter | (mm) | 60 |
Screw L/D Ratio | (L/D) | 24 |
Screw Drive Power | (KW) | 15 |
Screw heating Power | (3ΦKW) | 6.5 |
Screw Heating Zone | (Zone) | 3 |
HPDE Output | (kg/h) | 70 |
Oil Pump Power | (KW) | 7.5 |
Clamping Force | (KN) | 65 |
Mold Stroke | (mm) | 148-508 |
Max. Mold Size | (W×H)(mm) | 380×390 |
Max. Die Diameter | (mm) | 140 |
Die Heating Power | (4ΦKW) | 2.5 |
NO. of Heating Zone | (Zone) | 3 |
Blowing Pressure | (MPa) | 0.6 |
Air Consumption | (M3/min) | 0.5 |
Cooling Water Pressure | (MPa) | 0.3 |
Water Consumption | (L/min) | 50 |
Machine Size | (L×W×H)(m) | 2.9×1.8×2.6 |
Machine Weight | (Ton) | 5.8 |
