Project Description

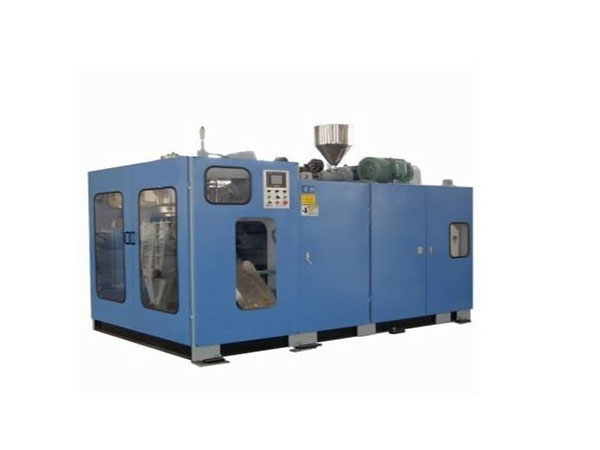

Single station blow molding machine 12L
|
Main Parameters |
Unit |
GRT70-12L |
|
Max. Product Volume |
(L) |
12 |
|
Dry Cycle |
(pcs/h) |
900 |
|
Screw Diameter |
(mm) |
70 |
|
Screw L/D Ratio |
(L/D) |
24 |
|
Screw Drive Power |
(KW) |
22 |
|
Screw heating Power |
(3ΦKW) |
7.8 |
|
Screw Heating Zone |
(Zone) |
4 |
|
HPDE Output |
(kg/h) |
90 |
|
Oil Pump Power |
(KW) |
11 |
|
Clamping Force |
(KN) |
110 |
|
Mold Stroke |
(mm) |
240-620 |
|
Max. Mold Size |
(W×H)(mm) |
530×520 |
|
Max. Die Diameter |
(mm) |
230 |
|
Die Heating Power |
(4ΦKW) |
3 |
|
NO. of Heating Zone |
(Zone) |
3 |
|
Blowing Pressure |
(MPa) |
0.6 |
|
Air Consumption |
(M3/min) |
0.8 |
|
Cooling Water Pressure |
(MPa) |
0.3 |
|
Water Consumption |
(L/min) |
60 |
|
Machine Size |
(L×W×H)(m) |
3.8×2.2×3.1 |
|
Machine Weight |
(Ton) |
7.8 |
