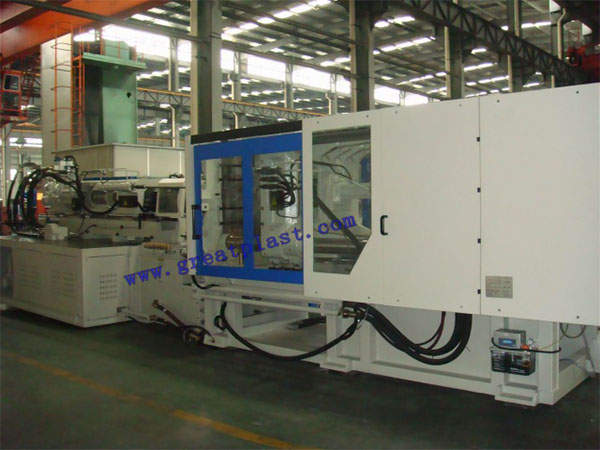

PVC Fitting Injection Molding Machine
PVC Fitting Injection Molding Machine

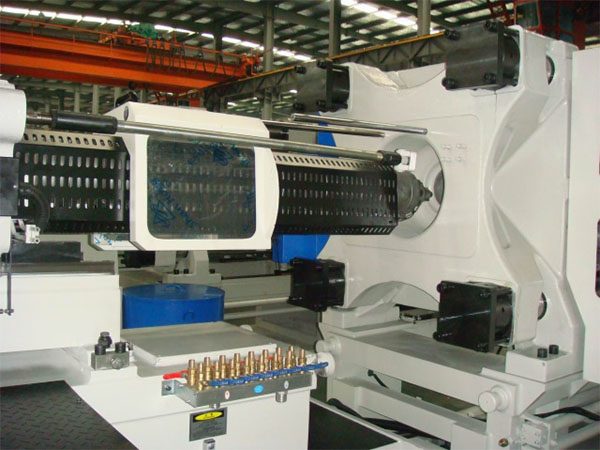

We using special rigid PVC screw , alumina heating band and fand for injection PVC material
| Model | TR-140PVC | TR-160PVC | TR-188PVC | TR-230PVC | ||||||||||
| Unit | A | B | C | A | B | C | A | B | C | A | B | C | ||
| INJECTION UNIT | Screw Diameter | mm | 40 | 45 | 50 | 40 | 45 | 50 | 45 | 50 | 55 | 50 | 55 | 60 |
| Screw L/D Ratio | 22.5 | 20.0 | 18.0 | 22.5 | 20.0 | 18.0 | 22.2 | 20.0 | 18.2 | 24.0 | 21.8 | 20.0 | ||
| Shot Size(Theoretical) | cm3 | 220 | 278 | 343 | 251 | 318 | 393 | 334 | 412 | 499 | 488 | 591 | 703 | |
| Injection Weight | g | 286 | 361 | 446 | 327 | 413 | 510 | 434 | 536 | 648 | 635 | 768 | 914 | |
| Injection Rate Into Air | cm3/s | 91 | 116 | 142 | 116 | 147 | 182 | 126 | 156 | 189 | 133 | 160 | 191 | |
| Injection Rate Into Air（ACC） | cm3/s | 2015 | 1592 | 1290 | 2015 | 1592 | 1290 | 2175 | 1762 | 1456 | 2230 | 1843 | 1549 | |
| Injection Pressure | bar | 40 | 45 | 50 | 40 | 45 | 50 | 45 | 50 | 55 | 50 | 55 | 60 | |
| Injection Stroke | mm | 175 | 175 | 210 | 249 | |||||||||
| Screw Speed | rpm | 0~190 | 0~237 | 0-157 | 0-154 | |||||||||
| CLAMPING UNIT | Clamping Force | KN | 1400 | 1600 | 1880 | 2300 | ||||||||
| Clamping Stroke | mm | 400 | 420 | 470 | 510 | |||||||||
| Space Between Tie Bar | mm | 410×410 | 460×460 | 510×470 | 560×530 | |||||||||
| Max. Mold Height | mm | 460 | 460 | 500 | 550 | |||||||||
| Min. Mold Height | mm | 180 | 180 | 180 | 200 | |||||||||
| Eject Stroke | mm | 120 | 120 | 125 | 135 | |||||||||
| Eject Force | KN | 38 | 38 | 53 | 62 | |||||||||
| No. Of Ejector Pins | piece | 5 | 5 | 5 | 9 | |||||||||
| OTHERS | Max. Pump Pressure | MPa | 16 | 16 | 16 | 16 | ||||||||
| Pump Motor Power | KW | 15.0 | 15.0 | 18.5 | 18.5 | |||||||||
| Heater Power | KW | 7.4 | 7.4 | 9.3 | 16 | |||||||||
| Hopper Capacity | Kg | 25 | 25 | 50 | 50 | |||||||||
| Oil Tank Capacity | L | 245 | 245 | 310 | 400 | |||||||||
| Machine Dimension(L×W×H) | m | 4.8×1.25×2.15 | 4.8×1.22×2.15 | 5.3×1.6×2.2 | 6.0×1.6×2.2 | |||||||||
| Machine Weight | T | 5.0 | 4.8 | 7.8 | ||||||||||
We have designed PVC fitting injection machine that meet client strictly production requirements.

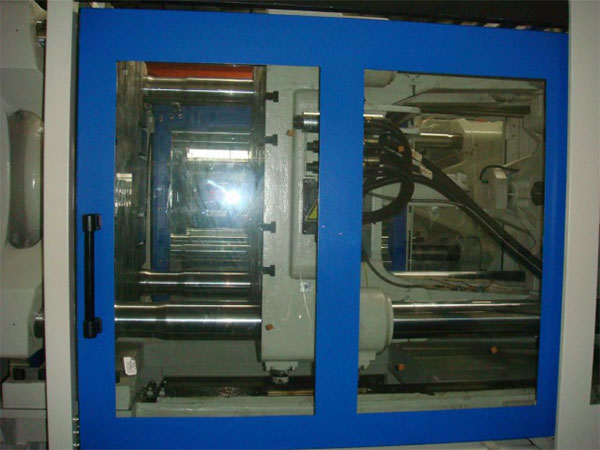

Wide safety doors are fit for the core pulling cylinder of fitting moulds.
Two groups core pulling devices, 2 in & out for each group
Hard chroming nozzle with bigger nozzle hole ensures high quality of products of PVC, UPVC

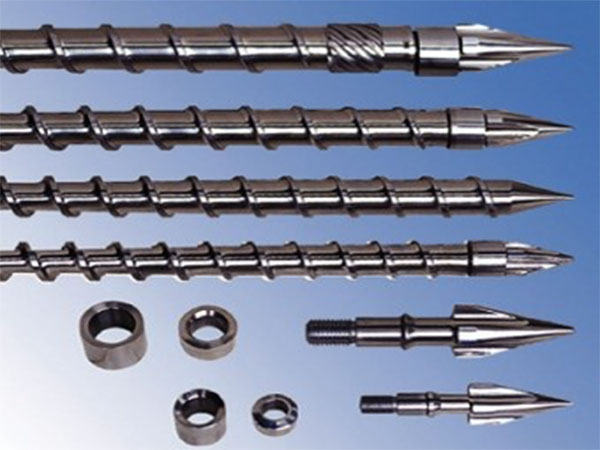

With corrosion resistance, hard chroming special screw for the PVC powders can plasticize PVC, UPVC powders evenly
Multi-stage air-cooling ensures exact temperature control necessary for PVC, UPVC which has narrow melt range
The increased hydraulic motor meets the requirements of high torque when PVC powers plasticized.
Driven by the servomotor or variable pump in order to save energy (Optional function)
Wide safety doors are fit for the core pulling cylinder of fitting moulds.
Two groups core pulling devices, 2 in & out for each group
Hard chroming nozzle with bigger nozzle hole ensures high quality of products of PVC, UPVC
With corrosion resistance, hard chroming special screw for the PVC powders can plasticize PVC, UPVC powders evenly
Multi-stage air-cooling ensures exact temperature control necessary for PVC, UPVC which has narrow melt range
The increased hydraulic motor meets the requirements of high torque when PVC powers plasticized.
Driven by the servomotor or variable pump in order to save energy (Optional function)
