Precise and energy saving injection moulding machine D130S
Send Inquiry


Precise and energy saving injection moulding machine 130TON

* High efficiency
The efficiency of the traditional electromotor is very low, and the power factor will contribute to the loss of power. However, the servomotor doesn’t have this problem and will improve the efficiency by 10% than that of the traditional one.



Unit

D130S

ITEMS

A

B

C

INECTION UNIT

Screw Diameter

mm

38

42

45

Screw L/D Ratio

L/D

22.1

20.0

18.7

Shot Size(Theoretical)

cm3

221

271

311

Injection Weight

g

202

246

283

Injection Pressure

MPa

232.7

190.5

165.9

Injection Rate into Air

cm3/s

114.3

142.9

139.7

174.6

160.3

200.4

Injection Stroke

mm

195

Injection Speed

cm/s

10.1 /12.6

Screw Speed

rpm

230 /287

CLAMPING UNIT

Clamping Force

KN

1300

Clamping Stroke

mm

430

Space Between Tie Bar

mm

420*420

Max. Mold Height

mm

460

Min. Mold Height

mm

160

Eject Stroke

mm

120

Eject Force

KN

34

No. Of Ejector Pins

piece

5

OTHERS

Max. Pump Pressure

MPa

17.5

Pump Motor Power

KW

15.0

18.5

Heater Power

KW

9.1

Hopper Capacity

Kg

25

Oil Tank Capacity

L

300

Weight

T

4.4

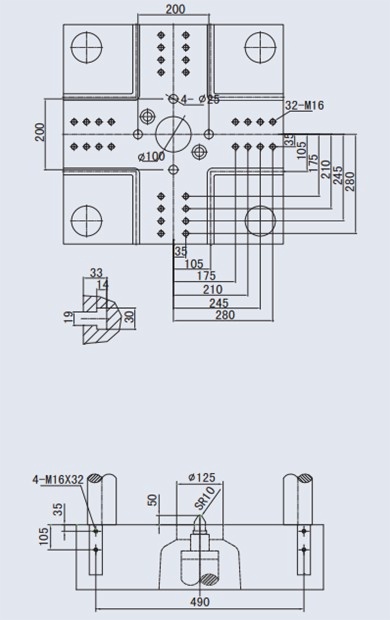

2.Mold platen drawing

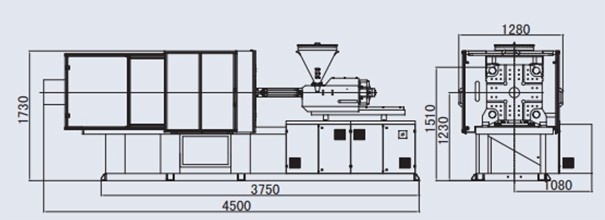

3. Machine Size
precise and energy saving injection molding machine is the latest product. It is driven by servo motor, fit for production of precise products. Our machine has main advantages as following:


* Energy Saving
The pressure and flow differ in each stage of plastic injection. The RPM of the traditional oil pump motor is invariable, so the redundant oil just overflows into the oil and o lot of energy wasted.
Servo motor injection molding machine is able to control the RPM by computer, thus the hydraulic pressure matches the power needed in run, ensuring the quality of products with lower energy consumption.
High performance servo motor system, hydraulic components from world famous brand, saves power by 50-80%. Servo motor system with quick response, response time 30-50ms
* High efficiency
The efficiency of the traditional electromotor is very low, and the power factor will contribute to the loss of power. However, the servomotor doesn’t have this problem and will improve the efficiency by 10% than that of the traditional one.
* Precision
Fast response. It takes only 0.03 seconds for the pressure flow to go up. The machines have higher position accuracy (0.1mm) and repeatability than those of traditional machines.
*With super big tie bar space and clamping stroke, with super big eject stroke
*With big diagonal type clamping unit design, easy mould open and the clamping unit running fast and smooth

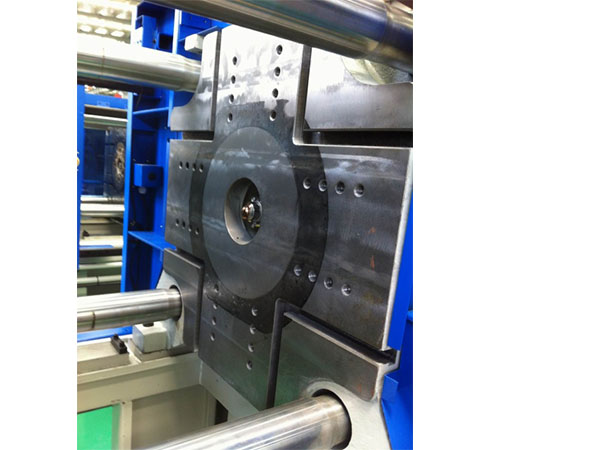

*Flexible front platen design, with little large-area anit-deformation.
*With faster heating, and more precise temperature control
*Two paralyzed pillar guider design, Injection is more stable& precise
*High-precision hydraulic oil filter system, oil temperature /level instant monitoring
*Versatile controller with excellent QC monitoring function, temperature detecting function.
*Hydraulic routes with the fewest bents, welding and with the shortest route
