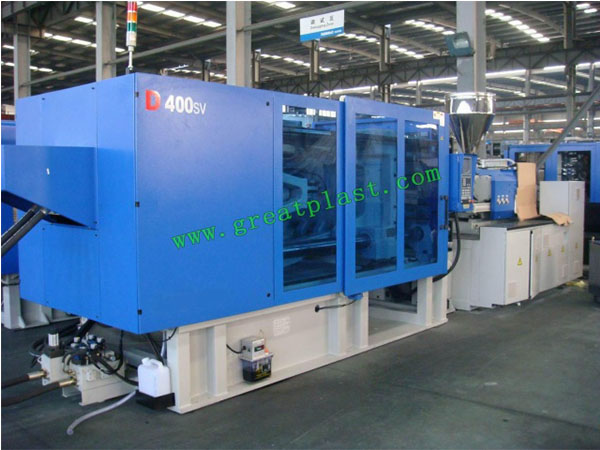

Precise and energy saving injection molding machine 400Ton D400S
Precise and energy saving injection molding machine 400Ton
| Unit | D400S | |||||||
| ITEMS | A | B | C | |||||
| INECTION UNIT | Screw Diameter | mm | 65 | 70 | 75 | |||
| Screw L/D Ratio | L/D | 23.7 | 22.0 | 20.5 | ||||
| Shot Size(Theoretical) | cm3 | 1161 | 1347 | 1546 | ||||
| Injection Weight | g | 1057 | 1226 | 1407 | ||||
| Injection Pressure | MPa | 221.8 | 191.3 | 166.6 | ||||
| Injection Rate into Air | cm3/s | 269.8 | 307.3 | 312.9 | 356.4 | 359.2 | 409.1 | |
| Injection Stroke | mm | 350 | ||||||
| Injection Speed | cm/s | 8.1/9.3 | ||||||
| Screw Speed | rpm | 166 /189 | ||||||
| CLAMPING UNIT | Clamping Force | KN | 4000 | |||||
| Clamping Stroke | mm | 750 | ||||||
| Space Between Tie Bar | mm | 730*730 | ||||||
| Max. Mold Height | mm | 750 | ||||||
| Min. Mold Height | mm | 280 | ||||||
| Eject Stroke | mm | 200 | ||||||
| Eject Force | KN | 124 | ||||||
| No. Of Ejector Pins | piece | 13 | ||||||
| OTHERS | Max. Pump Pressure | MPa | 17.5 | |||||
| Pump Motor Power | KW | 33.5 | 37.0 | |||||
| Heater Power | KW | 24.2 | ||||||
| Hopper Capacity | Kg | 50 | ||||||
| Oil Tank Capacity | L | 800 | ||||||
| Weight | T | 14.4 | ||||||

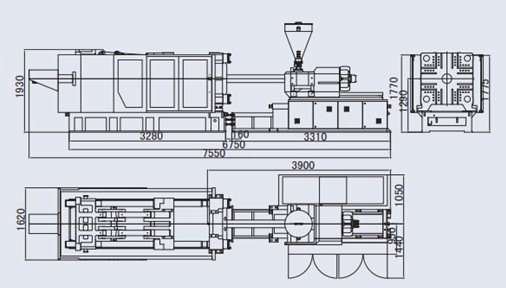

3.Machine size
* Energy Saving
The pressure and flow differ in each stage of plastic injection. The RPM of the traditional oil pump motor is invariable, so the redundant oil just overflows into the oil and o lot of energy wasted.
Servo motor injection molding machine is able to control the RPM by computer, thus the hydraulic pressure matches the power needed in run, ensuring the quality of products with lower energy consumption.
High performance servo motor system, hydraulic components from world famous brand, saves power by 50-80%. Servo motor system with quick response, response time 30-50ms
* High efficiency
The efficiency of the traditional electromotor is very low, and the power factor will contribute to the loss of power. However, the servomotor doesn’t have this problem and will improve the efficiency by 10% than that of the traditional one.
* Precision
Fast response. It takes only 0.03 seconds for the pressure flow to go up. The machines have higher position accuracy (0.1mm) and repeatability than those of traditional machines.
*With super big tie bar space and clamping stroke, with super big eject stroke
*With big diagonal type clamping unit design, easy mould open and the clamping unit running fast and smooth
*Flexible front platen design, with little large-area anit-deformation.
*With faster heating, and more precise temperature control
*Two paralyzed pillar guider design, Injection is more stable& precise

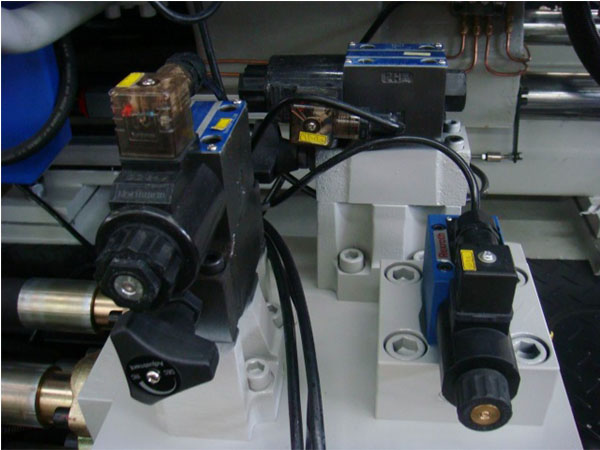

*High-precision hydraulic oil filter system, oil temperature /level instant monitoring
*Versatile controller with excellent QC monitoring function, temperature detecting function.
*Hydraulic routes with the fewest bents, welding and with the shortest route
