Project Description
PET Automatic blow molding machine 2L
Component part:

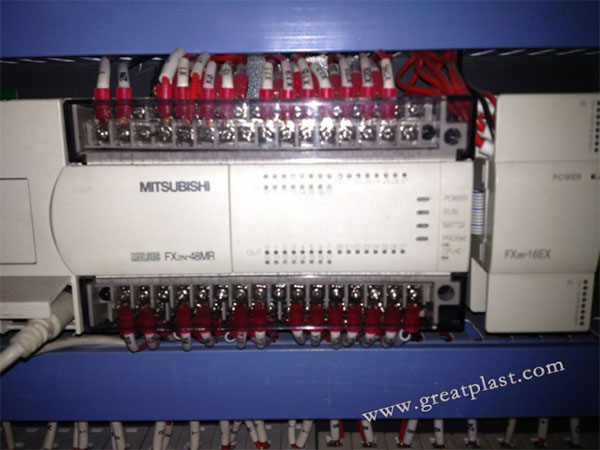

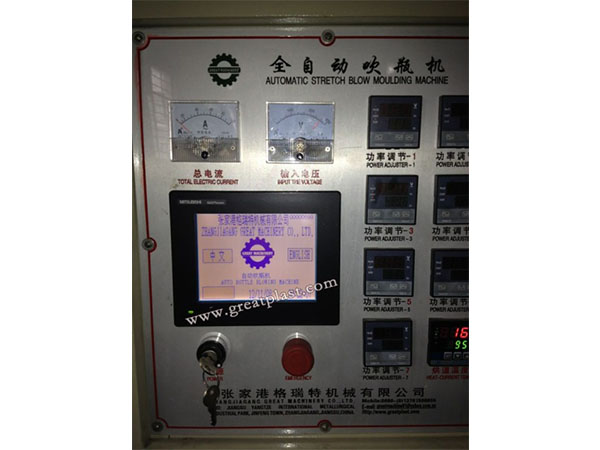

Touch screen of famous computer controller. Operate consistently and simple.

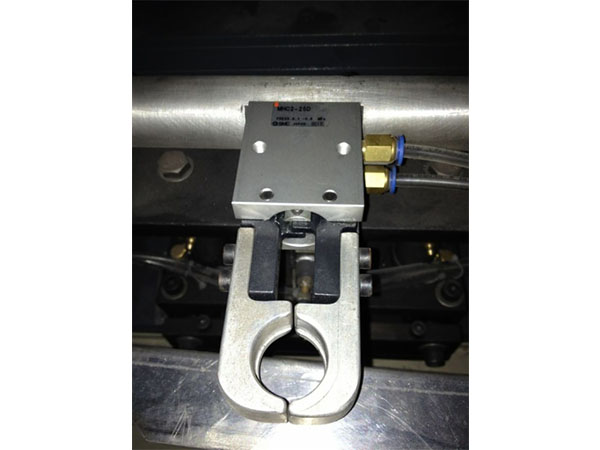

Pneumatic elements German FESTO and Japan SMC.
Specially designed for energy-saving purpose. Mechanical unit is compact and sound.
Trouble alert and diagnostic units to allow easy maintenance.

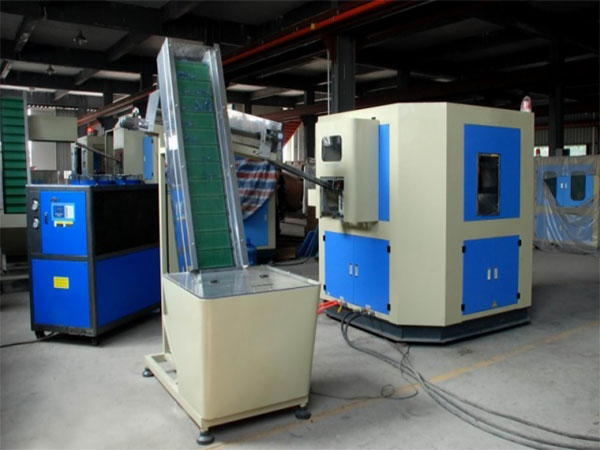

Environmental friendly. Nontoxic conveyor belt to carry performs.
Items | General Information | JG-1C2L | JG-2C2L | JG-4C2L |

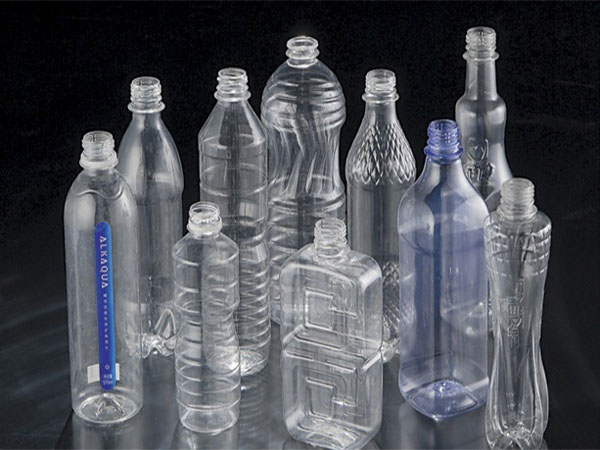

Container | Theoretical Output | 1500 pcs/hr | 2500pcs/hr | 4000pcs/hr |
Max.container volume | 1.5-2 L | 1.5-2 L | 1.5-2 L | |
Max.neck diameter | 45mm | 45mm | 45mm | |
Max.container diameter | 100mm | 100mm | 100mm | |
Max.container height | 340mm | 340mm | 340mm | |
Number of cavity | 1 Cavity | 2 Cavity | 4 Cavity | |
Electrical System | Total power | 20kw | 25kw | 35kw |
Use Power | 21kw | 15kw | 21kw | |
Air System | Working Pressure | 1.0Mpa | 1.0Mpa | 1.0Mpa |
Low Pressure Consuming | 1600L/min | 1400L/min | 1600L/min | |
Blow Pressure | ≤3.5Mpa | ≤3.5Mpa | ≤3.5Mpa | |
High Pressure Consuming | 1000 L/min | 1200L/min | 2400L/min | |
Chiller Water | Opreating Pressure | 0.3-0.5Mpa | 0.3-0.5Mpa | 0.3-0.5Mpa |
Temperature | 10-12℃ | 10-12℃ | 10-12℃ | |
Flow Rate | 20 L/min | 30L/min | 45L/min | |
Machine Data | Machine Dimension | 1.8*1.5*2.0m | 1.9*1.6*2.0m | 2.5*2.0*2.0m |
Machine Weight | 1200kg | 1300kg | 2200kg | |
Feeding Machine Dimension | 2.0*1.0*2.0m | 2.0*1.0*2.0m | 2.0*1.0*2.0m | |
Feeding Machine Weight | 200kgs | 200kgs | 200kgs |
