Project Description
Injection blow moulding machine GT60

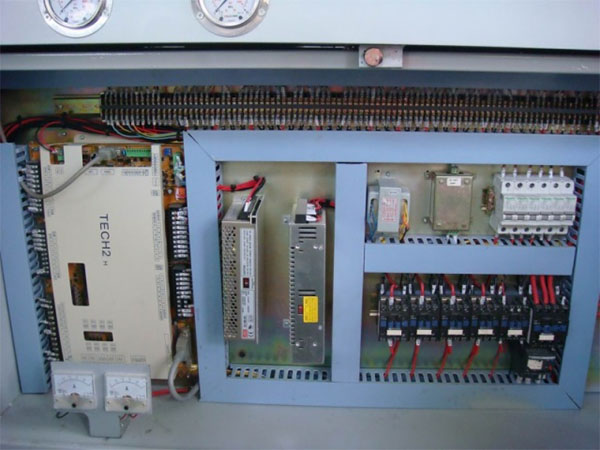

Characteristics

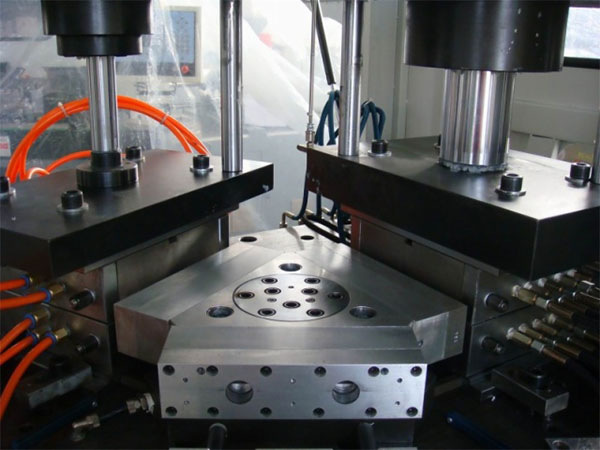

1. Apply the double vertical pole and single horizontal beam to make enough rotation space, longer bottles, make the mold installation easy and simple.
2. The injection mould adopts the double assistant cylinder open-close mould; ensure the stable and quick moving. The clamping force is three points equal distribution. High-speed hydraulic-added valve can increase the clamping speed.
NO | Model: GT 60 | Unit | Data |
1 | Dia.of screw | mm | 50 |
2 | Screw L/D | 22.5 | |
3 | Shot volume | cm3 | 430 |
4 | Injection weight | g | 310 |
5 | Injection pressure | Mpa | 161 |
6 | Max.screw stroke | mm | 220 |
7 | Max.screw speed | rpm | 10-235 |
8 | Heating capacity | Kw | 13 |
9 | No.of heating zone | Qty | 3 |
10 | Clamping blowing system | ||
11 | Clamping force of injection | KN | 600 |
12 | Clamping force of blowing | KN | 150 |
13 | Opening stroke of mold platen | mm | 140 |
14 | Lifign height of rotary table | mm | 75 |
15 | Max.platen size（L×W） | mm | 780×390 |
16 | Min.mould thickness | mm | 280 |
17 | Heating capacity of mould | Kw | 5 |
18 | Stripping system | ||
19 | Stripping stroke | mm | 220 |
20 | Driving system | ||
21 | Motor power | Kw | 30 |
22 | Hydraulic pressure | Mpa | 14 |
23 | Product range | ||
24 | Suitable bottle range | L | 0.015～0.85 |
25 | Max.bottle height | mm | ≤200 |
26 | Max.dia.of bottle | mm | ≤120 |
27 | Other | ||
28 | Dry cycle | Second | 5 |
29 | Min.air pressure | Mpa | 1.2 |
30 | Discharge rate of compressed air | m3/min | ＞0.8 |
31 | Water flowage | m3/h | 3.5 |
32 | Total rated power with mould heating | Kw | 47 |
33 | Dimension(L×W×H) | mm | 4200×1900×2450 |
34 | Net weight | T | 10.2 |

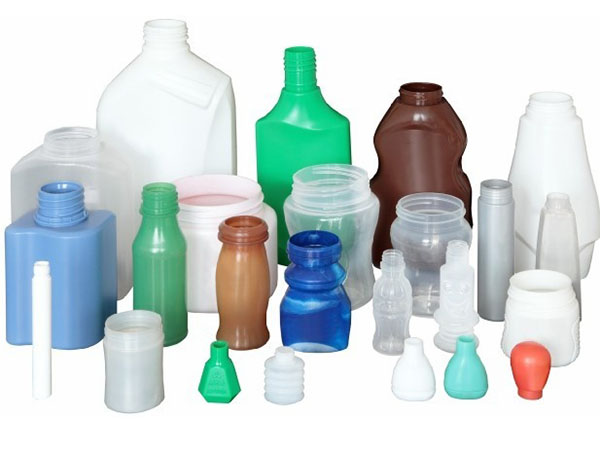

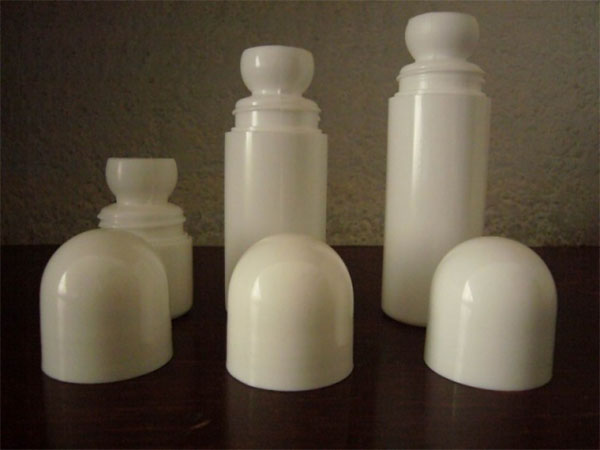

Materials：suitable for majority kind of thermoplastic resins such as HDPE,LDPE,PP,PS,EVA and so on.
Cavity number of one mould corresponding to product volume.（For reference）
| Product Volume | 15 ML | 20 ML | 40 ML | 60 ML | 100 ML | 120 ML | 200 ML |
| Mold Cavity quantity | 16 | 14 | 14 | 12 | 10 | 9 | 6 |
