Project Description

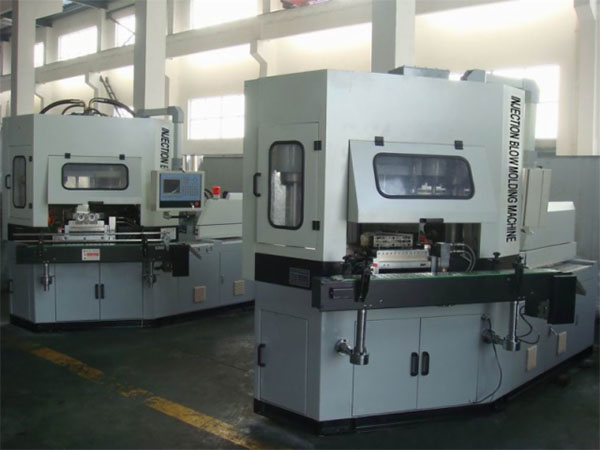

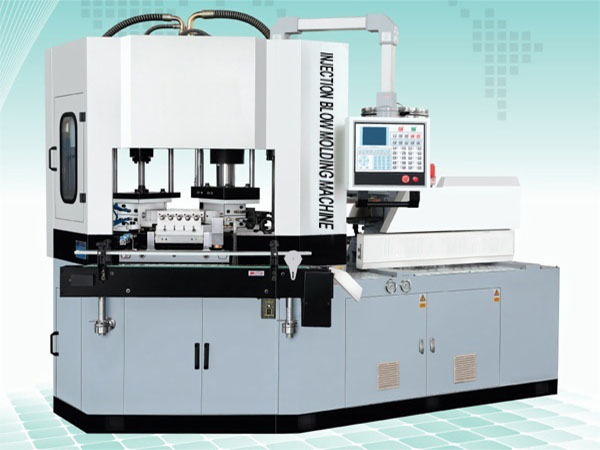

Injection Blow Molding Machine GT30
Characteristics
1.Adopt variable displacement piston pump, can save 20% power than usual.

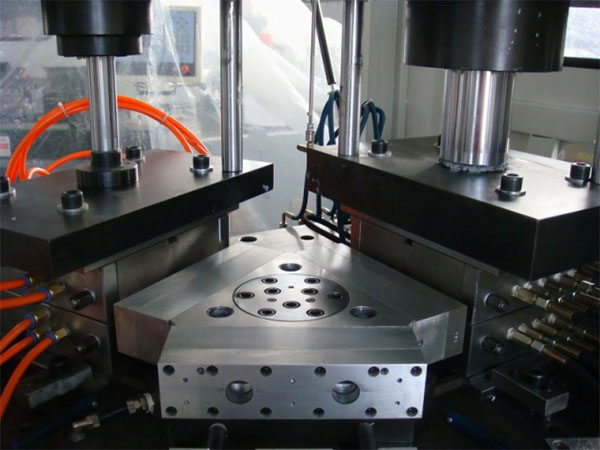

2.Apply the double vertical pole and single horizontal beam to make enough rotation space, longer bottles, make the mold installation easy and simple.
| NO | Model: GT 30 | Unit | Data |
| 1 | Dia.of screw | mm | 40 |
| 2 | Screw L/D | 20 | |
| 3 | Shot volume | cm3 | 200 |
| 4 | Injection weight | g | 142 |
| 5 | Injection pressure | Mpa | 175 |
| 6 | Max.screw stroke | mm | 165 |
| 7 | Max.screw speed | rpm | 10-225 |
| 8 | Heating capacity | Kw | 7.5 |
| 9 | No. of heating zone | Qty | 3 |
| 10 | Clamping & blowing system | ||
| 11 | Clamping force of injection | KN | 300 |
| 12 | Clamping force of blowing | KN | 43 |
| 13 | Opening stroke of mold platen | mm | 120 |
| 14 | Lifign height of rotary table | mm | 60 |
| 15 | Max.platen size（L×W） | mm | 350×240 |
| 16 | Min.mould thickness | mm | 180 |
| 17 | Heating capacity of mould | Kw | 1.2～2.5 |
| 18 | Stripping system | ||
| 19 | Stripping stroke | mm | 180 |
| 20 | Driving system | ||
| 21 | Motor power | Kw | 15 |
| 22 | Hydraulic pressure | Mpa | 14 |
| 23 | Product range | ||
| 24 | Suitable bottle range | L | 0.005～0.8 |
| 25 | Max.bottle height | mm | ≤170 |
| 26 | Max.dia.of bottle | mm | ≤100 |
| 27 | Other | ||
| 28 | Dry cycle | Second | 6 |
| 29 | Min.air pressure | Mpa | 1.2 |
| 30 | Discharge rate of compressed air | m3/min | ＞0.8 |
| 31 | Water flowage | m3/h | 3 |
| 32 | Total rated power with mould heating | Kw | 22.56 |
| 33 | Dimension(L×W×H) | mm | 3100×1350×2280 |
| 34 | Net weight | T | 3.7 |

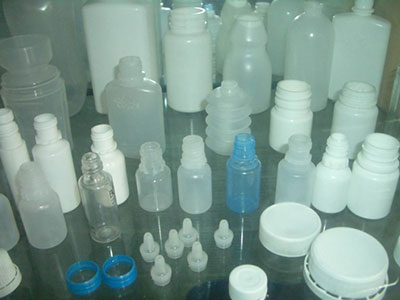

Materials：suitable for majority kind of thermoplastic resins such as HDPE,LDPE,PP,PS,EVA and so on.
Cavity number of one mould corresponding to product volume.(For reference)
| Product Volume | 8 ML | 15 ML | 20 ML | 40 ML | 60 ML | 80 ML | 100 ML |
| Mold Cavity quantity | 7 | 6 | 5 | 4 | 4 | 3 | 3 |
